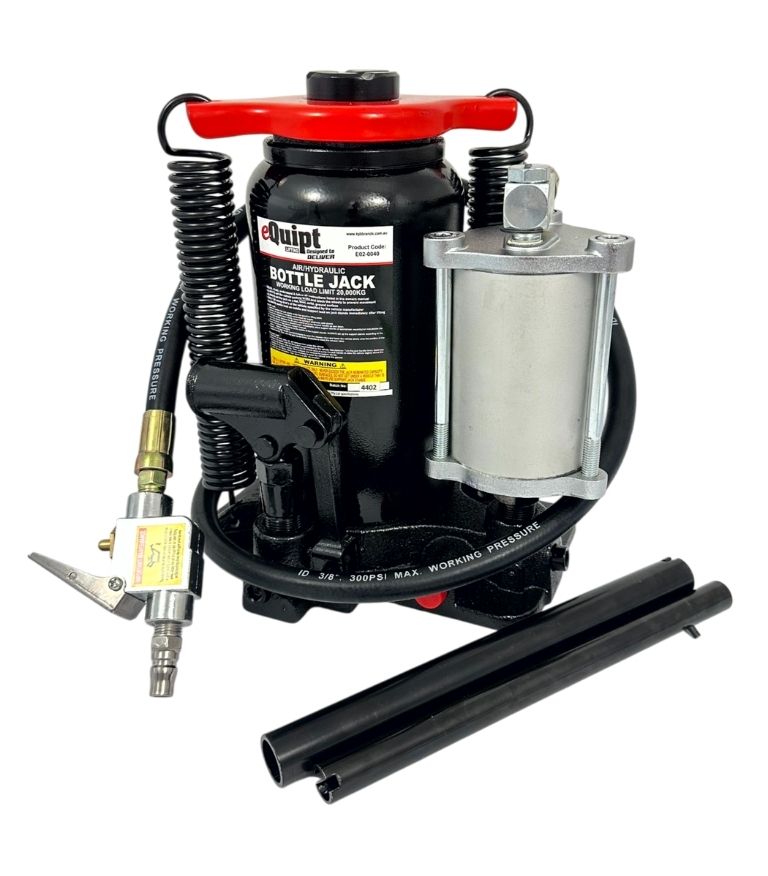

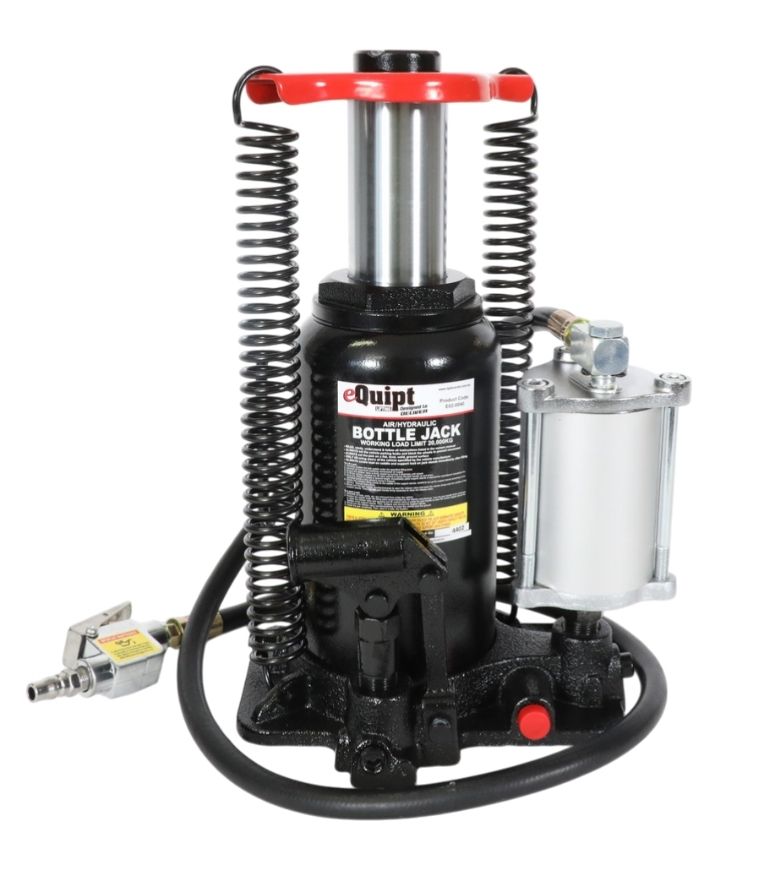

Bottle Jack Air/Manual 20,000kg
- Product Code: E02-0040
- Brand: eQuipt

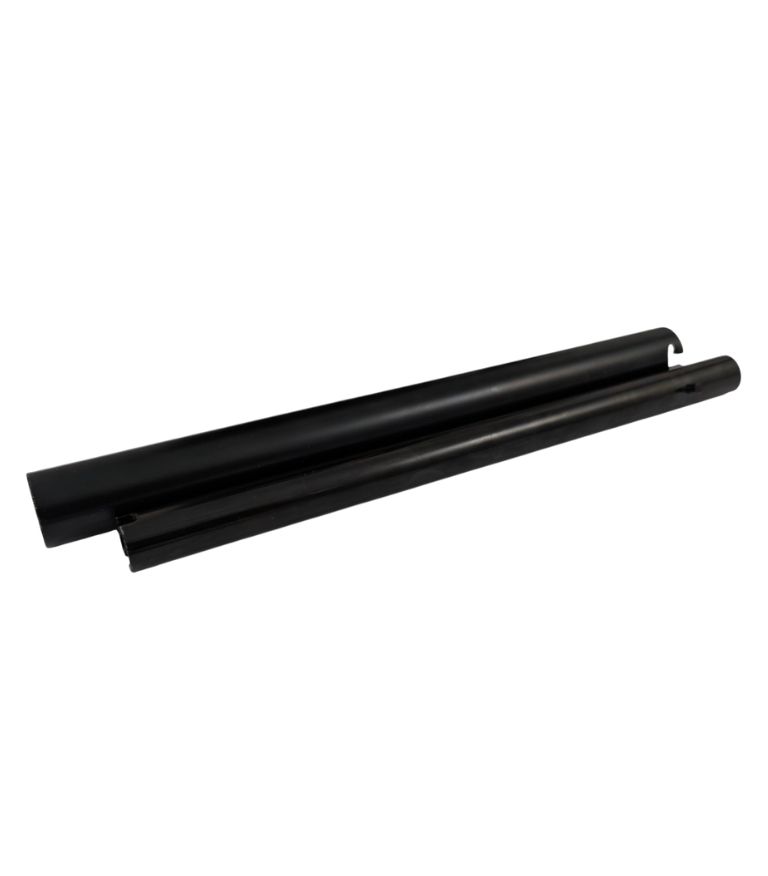

This heavy duty 20,000kg eQuipt Air/Manual Bottle Jack packs a big punch, providing enough lifting power for use with farm vehicles, heavy-duty machinery, industrial construction equipment and more. The 2 piece removable handle is long enough to lift the load with ease and also helps to position the jack. Use this workhorse with a 110-125psi rated air pressure supply to lighten the load and provide the fast, strong lifting power you need, or operate it manually for normal operation just about anywhere.
Our eQuipt Air/Manual Bottle Jacks are designed to operate either manually or pneumatically. The manual function allows for normal operation anywhere, even without an air supply.
Fitted with a safety overload valve for extra protection, the safety valve is installed between the pump and high-pressure check valve in the barrel/lift ram assembly. When attempting to raise a load greater than the jack's capacity, the safety valve opens on each pump stroke and diverts any further oil back to the reservoir thus preventing the raising of the load.
Features:
- Manufactured of superior-grade steel to exacting standards for quality and durability
- Industrial quality hydraulic cylinder unit operates at lower oil pressure to raise load, reduce wear and extend service life
- Precision machined, chrome plated and polished piston-ram
- CNC machined ports and threads
- Built-in hydraulic by-pass protection against over pumping damage
- Versatile "quick connector" design for easy removal of air hose for compact storage or remote operation

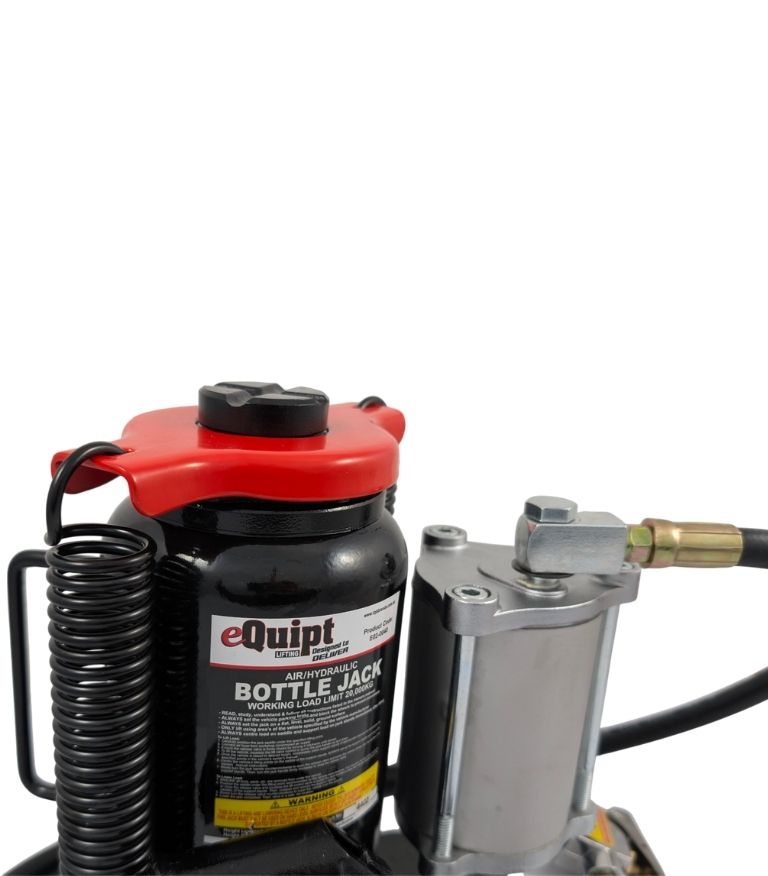

- Compact yet powerful Industrial Quality Air Turbo Motor
- Lead-free paint is applied to ensure a long-lasting finish and prevent corrosion
- Paint finish is oil, grease and dirt-resistant for easy cleanup
Specifications:
- Safe Working Capacity: 20,000kg
- Minimum Height: 262mm
- Maximum Height: 504mm
- Hydraulic Stroke: 163mm

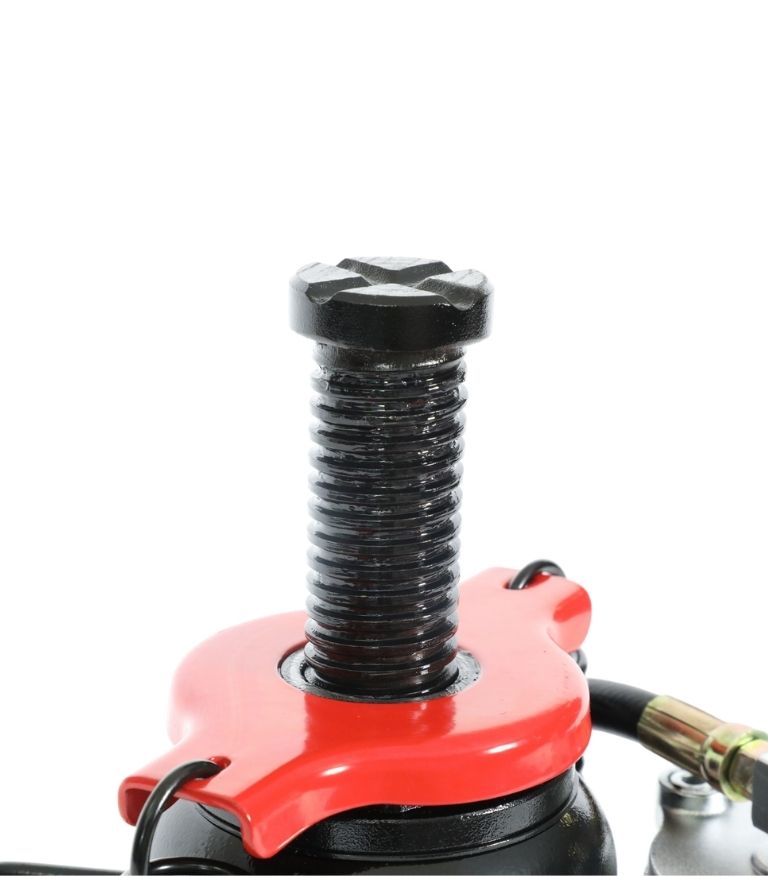

- Adjustable Screw: 79mm
- Operating Air Pressure: 110-125psi
- Air Inlet Fitting: 1/4" x 18NPT
- Nett Weight: 16kg
- Carton: 275 x 190 x 290mm
- Gross Weight: 17kg
IMPORTANT: NEVER get beneath a vehicle that is only supported by a jack. ALWAYS chock the vehicle wheels and use support stands.
Intended Use
For professional heavy duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.
